The New Fractal AM4

Amp modeling, speaker simulation, effects, and more - now easier than ever

Join the waitlist now by emailing: This email address is being protected from spambots. You need JavaScript enabled to view it. (UK waitlist: This email address is being protected from spambots. You need JavaScript enabled to view it.)

The AM4 Amp Modeler delivers great tone in a great package. It combines Fractal's latest Cygnus X-3 amp modeling, visual DynaCab™ speaker simulation, UltraRes™ user cabs, and a suite of impressive effects, with a streamlined workflow designed for players who want pro sound with less complexity. With a user interface inspired by traditional amps and pedals* AM4 places the full uncompromising sound of Fractal Audio in your hands—or, more accurately, at your feet.
* …plus an Expert Edit feature that stays hidden until you need access to advanced parameters.

Pro Sound, Great Features, Easy to Use

The legendary sound of Fractal Audio for players who demand the best. Loaded with fantastic features designed by musicians for musicians.

Go to Shop

Join the Waitlist

UK Waitlist

Huge tone in a the palm of your hand

The AM4 is a compact powerhouse. It’s perfect on a pedalboard, sits neatly on a studio desk, fits in a backpack with room for expression pedals, or slips into an overhead bag as your grab-and-go fly rig.

Most Accurate Amp Modeling

Amps, drives, compression, delay, reverb and more from the Axe-Fx III library - with the renowned amp modeling from Fractal Audio.

Pedalboard-simple, flagship power

Four silent footswitches and dedicated knobs offer instant control while top-tier Fractal DSP handles the heavy lifting.

Mobile Guitar-Recording Setup

With USB audio and a headphone jack, it doubles as a mobile guitar-recording setup with your Mac or PC. It’s our most compact all-in-one unit ever!

Stage-ready at a touch

Dial in Scenes, Presets, FXs, Amp Boosts and more with the flexibility of Fractal Audio's foot controller ecosystem

Road-ready chassis

Steel enclosure, recessed connectors and pop-suppressed power built to survive nightly stages and long travel.

AM4 Quickstart

AM4 Manual

User-Experience

Inputs & Outputs AM4

Fractal Audio is known for building audiophile-grade signal paths into guitar products, and the AM4 is no exception. Its low-noise “secret sauce” instrument input with Auto-Z impedance authentically loads your guitar pickups, while balanced outputs preserve signal integrity when going direct. An analog stereo insert provides Send and Return jacks for outboard gear, and a high-quality headphone amp supports silent practice and monitoring. Two Pedal ports each accept an expression pedal or external footswitch. For digital connectivity, AM4 includes S/PDIF I/O, USB-C for MIDI and 4×4 audio with re-amping, and 3.5 mm MIDI In and Out. The AM4 is powered by the included 9V DC 1.5A adapter.

1. INPUT

Connect your guitar, bass or other instrument to the Instrument Input using an instrument cable. You can also connect the outs of guitar pedals or other instrument level signals. Input Levels: the AM4 comes set for a typical guitar with hot pickups. If input clipping occurs, an IN CLIP warning is displayed and the Input Pad setting is temporarily increased.

2. INSERTS

These jacks provide a fixed insert point between the AM4’s internal effects and its balanced outputs. Use them to connect external gear while preserving the clean, low-noise performance of the balanced outputs. For mono, use a standard patch cable. For stereo, use a TRS-to-dual-mono insert cable (tip = left, ring = right)

3. OUTPUTS

Two balanced 1/4" outputs for connecting to FRFR speakers, mixers, audio interfaces, power amp/return, etc. For balanced connections, use TRS-to-XLR or TRS-to-TRS cables as appropriate. For unbalanced connections, use standard patch cables. The AM4 does not require or support the use of Humbuster™ cables. Because it is an amp modeler, the AM4 outs operate at adjustable line level rather than fixed unity gain.

4. HEADPHONE

A 3.5 mm stereo jack for headphones. 35Ω output impedance. Recommended headphone impedance < 600 Ω

5. PEDAL 1

¼″ TRS for an expression pedal or momentary/latching switch; fully assignable in SETUP › Pedals.

6. PEDAL 2

Same again for extra real-time control (volume, wah, tap-tempo, kill-switch, etc.).

7. SPDIF IN/OUT

Digital interconnection for SPDIF devices. The AM4
runs at a fixed sample rate of 48 kHz.

8. USB-C

Class-compliant 2 × 2 audio interface (24-bit/48 kHz) with MIDI-over-USB for AM4-Edit, DAW tracking and firmware updates.

9. MIDI IN

3.5 mm TRS; 5-pin DIN adapter supplied. Receives program- and control-change from controllers or DAW.

10. MIDI OUT

3.5 mm TRS. Sends AM4 data.

11. POWER (9V DC)

With pop-suppression; use the included supply.

DIMENSIONS: Width: 254 mm Depth: 160 mm Weight: 1.56 kg

INPUT – Connect your guitar, bass or other instrument to the Instrument Input using an instrument cable. You can also connect the outs of guitar pedals or other instrument level signals. Input Levels: the AM4 comes set for a typical guitar with hot pickups. If input clipping occurs, an IN CLIP warning is displayed and the Input Pad setting is temporarily increased.
INSERTS – These jacks provide a fixed insert point between the AM4’s internal effects and its balanced outputs. Use them to connect external gear while preserving the clean, low-noise performance of the balanced outputs. For mono, use a standard patch cable. For stereo, use a TRS-to-dual-mono insert cable (tip = left, ring = right)
OUTPUTS – Two balanced 1/4" outputs for connecting to FRFR speakers, mixers, audio interfaces, power amp/return, etc. For balanced connections, use TRS-to-XLR or TRS-to-TRS cables as appropriate. For unbalanced connections, use standard patch cables. The AM4 does not require or support the use of Humbuster™ cables. Because it is an amp modeler, the AM4 outs operate at adjustable line level rather than fixed unity gain.
HEADPHONE – A 3.5 mm stereo jack for headphones. 35Ω output impedance.
Recommended headphone impedance < 600 Ω
PEDAL 1 – ¼″ TRS for an expression pedal or momentary/latching switch; fully assignable in SETUP › Pedals.
PEDAL 2 – Same again for extra real-time control (volume, wah, tap-tempo, kill-switch, etc.).
S/PDIF IN / OUT – Digital interconnection for SPDIF devices. The AM4 runs at a fixed sample rate of 48 kHz. Coax cable included.
USB-C – Class-compliant 4 × 4 audio interface (24-bit/48 kHz) with MIDI-over-USB for AM4-Edit, DAW tracking and firmware updates.
MIDI IN – 3.5 mm TRS; 5-pin DIN adapter supplied. Receives program- and control-change from controllers or DAW.
MIDI OUT – 3.5 mm TRS. Sends AM4 data.
POWER 9 V DC / 1.5 A – With pop-suppression; use the included supply.

Accurate Amp Modeling

Real tube amp tone and feel through advanced physical modeling technology

Fractal Audio’s industry-leading amp modeling is at the heart of the AM4. Built on the same uncompromising technology as the Axe-Fx III, it delivers the tone, feel, and authentic controls of real tube amps—from vintage classics to modern monsters, from sparkling cleans to elusive edge-of-breakup tones, to molten leads—and everything in between.

Unlike “take-it-or-leave-it” capture systems, the AM4 gives you a fully adjustable amp model every time: familiar amp controls behave like the originals, so you can dial in the tone you want instead of hunting through endless snapshots of someone else’s settings.

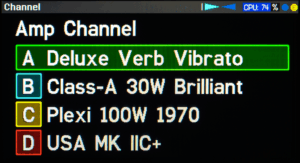

Four Channels, Endless Tone

The amp block includes four channels, giving you gapless switching between four amp-and-cab tones in every preset. With 104 presets, and 240+ amp models, the AM4 covers the range of a warehouse full of amps.
Intuitive Footswitch Control

New Amp Mode lets you select channels directly from the footswitches. The amp also includes a built-in tap-on/off boost, plus customizable channel colors. Other modes switch presets, scenes or effects and access tuner/tap tempo.
Hands-On Control

In Amp Mode, simple, authentic controls stay on screen, making the AM4 feel as fast and familiar as an amp or dedicated pedal—with gain and tone controls modeled on the originals.

Speaker Simulation, your way

Choose from intuitive DynaCabs™ or load your favorite IRs.

Integrated directly into the amp block, 45+ classic and modern guitar and bass DynaCabs™ deliver realistic speaker tones with an intuitive interface that allows you to position virtual mics in real-time—making it fast and easy to achieve a desired tone. You can also load your favorite Impulse Responses (IRs), from Fractal Audio or third- party creators, using UltraRes™ User Cabs for complete flexibility. A built-in room sim adds ambient dimensional sound without a separate block.

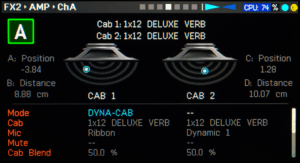

Visual Mic Positioning

DynaCab™ lets you shape tone in virtually the same way audio engineers do—by moving a mic on a speaker. Brighter or darker, more or less low end proximity… just move the mic and listen. No studio chops required—and no more sorting through too many static IRs!
Load your Favourite IR

You can also load your favorite Impulse Responses (IRs), from Fractal Audio or third-party creators. AM4 supports standard IR formats and uses UltraRes™ processing to deliver enhanced performance and low-end detail.

World Class Effects

A suite of over 325 classic and cutting-edge stompbox and studio models.

The AM4 offers a suite of classic and cutting-edge stompbox and studio effects powered by the algorithms of the Axe-Fx III, vetted by so many of the world’s top guitar heroes. You get 77+ Drive models—overdrives, distortions, fuzzes, preamps, and boosts; 79+ Reverbs including plates, springs, halls, rooms, celestial shimmers, and special effects; dozens of Delays from tape and analog to pristine digital; and 150+ options across Chorus, Compressor, Flanger, Phaser, Tremolo, Wah, EQ, Gate, Filter, and more. The surface is fast and familiar—like classic hardware—while hidden Expert Edit pages unlock deeper controls and extensive modifier options for MIDI, pedals, LFOs, envelopes, and even a sequencer.

USB Audio and MIDI

USB gives the AM4 flexible features for recording, playback, and automation. You can record the AM4’s processed outputs or capture a DI for re-amping. You can play back computer audio through the AM4’s stereo outputs, or send tracks to the unit for processing, including re-amping. The AM4’s USB MIDI ports also appear in your DAW for automation and control.

AM4-Edit

A fast visual Editor and Manager

AM4-Edit lets you edit and manage your AM4 from a Mac or PC. Create and edit presets with full visual control. Use advanced tools like the Block Library, Channel Copy, Scene Swap, and Templates to accelerate your workflow. Integrated functions let you share and import presets and cabs, while a companion utility, Fractal-Bot, lets you back up your AM4, install updates, and more.

Fractal AM4 Amp Modeler

The AM4 pairs hands-on simplicity with serious horsepower, giving musicians a premium, go-anywhere amp modeler.

Go to Shop

Buy now

Buy in UK

Summary of AM4 Features

Industry-Leading Amp Modeling – The AM4 features Fractal Audio’s latest amp modeling, widely recognized for accurate tone, dynamic feel, and continual innovation. Fractal Audio's technique models each component of the analog circuit so the model behaves like the real amp at any setting.
Integrated Speaker Cab Simulation – Choose from 45+ DynaCab™ models with visual mic positioning, or load UltraRes™ and standard-format user IRs. Includes a stereo room simulator and more.
Four Amp/Cab Channels – Four independent amp-and-cab channels per preset with gapless switching. Like having four premium amp pedals in one compact unit.
Legendary Effects – Powered by Axe-Fx III algorithms: dozens of delays, 77+ drives, 79+ reverbs, plus 150+ types across chorus, compressor, flanger, phaser, tremolo, wah, EQ, filter, gate, and more.
104 Presets, 4 Scenes Each – 104 customizable presets, each with four blocks and four scenes. Every block has four channels for exceptional flexibility with features like gapless switching.
Four Footswitches, Five Modes – Instant access to Presets, Scenes, Effects and effect channels, Tuner/Tempo, and Amp Mode, with custom colors and an integrated tap on/off boost.
Extreme Audio Quality – Audiophile-grade signal path with the quality, clarity, noise performance, and headroom for stage or studio, plus a high-quality headphone output for silent monitoring.
Expression – Connect up to two expression pedals or external switches for real-time control. Compatible with Fractal Audio EV pedals and many 3rd-party options.
Pro-Grade I/O – low-noise Auto-Z input, balanced TRS outputs, stereo analog insert, S/PDIF I/O and MIDI.
4×4 USB Audio – Record processed outputs, capture a DI, monitor computer audio, or re-amp tracks—all through USB.
AM4-Edit – Free editor/librarian for Mac/PC which visualizes the entire AM4. Create and edit presets, import and export cabs, manage system settings. Plus special features like block library, scene manager, and more.
Upgradeable Firmware – Fractal Audio is known for continual improvements. New firmware updates can add new amps, effects, features, refinements, and performance enhancements—making your AM4 even better over time!
